The Orphiecam 300 is a high-definition underwater camera engineered to improve visibility during subsea inspection operations, particularly in challenging underwater environments where conventional cameras may struggle to produce usable imagery.
Designed by Orphie, the subsea imaging division of i2S, the Orphiecam 300 combines real-time image processing with low-latency video to help ROV operators and inspection teams see farther and capture clearer visual information underwater. The system is designed to provide up to three times the visibility distance while maintaining real-time performance, helping teams perform inspections more efficiently in difficult conditions.
With a 300-meter depth rating and compact subsea housing, the Orphiecam 300 is well suited for ROV inspection and other professional underwater imaging applications.
The Orphiecam 300 is well suited for:
The manufacturer lists a 62° diagonal, 54° horizontal, and 40° vertical field of view in water. The camera operates on 12–32 V input power with a maximum power consumption of 13 W.
Poor underwater visibility can slow inspections, make navigation more difficult, and limit the quality of visual data available to operators. The Orphiecam 300 is designed specifically to address that challenge.
Its real-time image-processing technology enhances underwater visibility while maintaining low latency, allowing operators to view improved imagery as the inspection is taking place. Rather than relying solely on post-processing after a dive or ROV mission, teams can use the enhanced visual information during the operation itself. The manufacturer promotes the system as providing up to three times the visibility distance compared with a standard camera.
This makes the Orphiecam 300 particularly valuable for inspection work where visibility conditions can directly affect efficiency, situational awareness, and the ability to assess underwater assets.

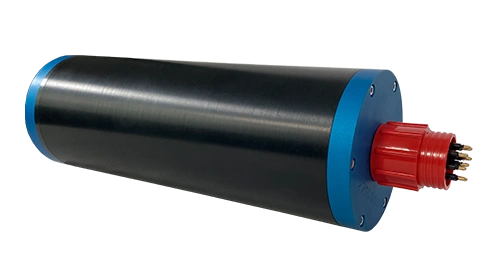

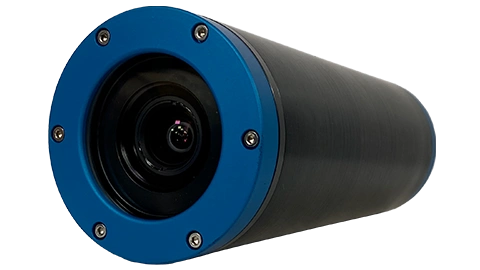

The Orphiecam 300 combines professional imaging performance with a compact housing designed for underwater deployment. The camera measures approximately 254.5 mm in length and 90 mm in diameter and weighs approximately 2.3 kg in air and 0.6 kg in water.
Connector configurations include Glenair G55 and MacArtney options, with additional cable lengths and configurations available to accommodate different subsea installations.
The Orphiecam 300 can be operated with Orpheo, Orphie’s custom software for its underwater cameras. Orpheo provides a centralized interface for configuring camera parameters and includes additional functionality such as digital zoom, snapshots, and video recording.
This gives operators a straightforward way to control the camera and capture inspection imagery during subsea operations.
The Orphiecam 300 is designed around one of the most persistent challenges in underwater inspection: being able to see clearly enough to do the job efficiently.
Its combination of enhanced visibility, real-time processing, low latency, HD imaging, and a rugged 300-meter-rated housing makes it a compelling camera solution for ROV operators and subsea inspection teams working in challenging marine environments.
For projects where conventional underwater cameras are limited by poor visibility, the Orphiecam 300 can provide operators with clearer visual information while the inspection is underway.
